MPC Live vs MPC X: what's actually different

The short version

The MPC X and the original MPC Live launched together as Akai's first standalone MPC generation, share the identical 16-pad surface and the same 1280x800 touchscreen resolution, and get cross-shopped constantly because of that shared launch story. But Akai's own Technical Specifications appendix shows they were built for two different jobs. The X carries 16 Q-Link knobs plus 7 dedicated gain/mix knobs plus a data encoder, 23 physical knobs against the Live's 4, and backs that up with real XLR mic preamps, dedicated instrument inputs, footswitch inputs, and 8 CV/Gate outputs, none of which the Live's own spec table lists in any configuration. The Live's answer is a battery, up to 6 hours of it, and less than half the weight.

SAM'S NOTE: people ask me "Live or X" almost as often as "Live II or One," usually while picturing the X as just a Live with a bigger screen bolted on. It isn't. The screen is the least interesting difference. Read the knob count and the input list before you decide which machine you're actually buying.

Same quarter, same generation

The MPC X launched in the first quarter of 2017 at a reported $1,999 street price, announced alongside the MPC Live as Akai's first standalone MPC generation, the rack-style flagship built around a 10.1" touchscreen and a full pro-audio interface. The MPC Live shipped that same quarter at a $1,199 launch price, the compact, battery-powered, portable half of the same launch pair, a full $800 cheaper than the X at release. Both remain in Akai's current lineup as of this writing, still documented in the current v3.9 Standalone OS User Guide alongside the newer Live II, One, One+, One G2, and Key models, though as the section below on the manual's own documented gaps covers, neither the X nor the original Live gets the full front/rear-panel walkthrough treatment that the newer models do in this particular manual revision.

Spec sheet, straight from the manual

Every figure below is quoted or paraphrased directly from Akai's own MPC_Standalone_OS_User_Guide_v3.9.pdf Technical Specifications appendix: the "MPC X / MPC X Special Edition" table at PDF pages 468-470 (printed footers 468-470) and the "MPC Live" table at PDF page 471 (printed footer 471), a flat, zero-offset match between PDF page index and printed footer at this point in the appendix. Figures shown are for the base MPC X where the table splits by variant; the Special Edition's RAM and storage jump is covered in its own section below.

The 23-knob control surface gap

This is the single number most buyers never actually add up. Akai's own Mechanical block for the MPC X lists three separate rows of physical rotary controls: 16 touch-sensitive Q-Link knobs for parameter adjustment, 7 additional 270-degree knobs dedicated to gain, mix, and level, and a data encoder for value entry and navigation. The Live's own Mechanical block lists exactly one knob row: 4 touch-sensitive Q-Link knobs, plus the same data encoder. Add the two rows together on the X and the machine ships with 23 dedicated knobs before you count the encoder, roughly six times the Live's 4. That is not a cosmetic difference. The X's 7 gain/mix knobs map to physical channels, one knob per input or output level, grab and turn, no menu. The Live's 4 Q-Link knobs cycle through banks on the touchscreen instead, the same workflow every current MPC below the X uses, but it means every mixing move on a Live routes through the screen first.

This is the same underlying gap this site's mpc-x-buying-guide article already flagged when comparing the X's total I/O against the rest of the current lineup, just isolated here to the knob row specifically rather than the full jack count: no other machine on this site's coverage, current or vintage, documents anywhere close to 23 dedicated physical knobs.

A studio front end vs a sampler

The knob gap isn't isolated. Akai's own Digital Audio System block for the MPC X opens with a section the Live's table doesn't have at all: two balanced XLR+1/4" combo mic inputs with a real preamp spec (EIN, gain range, dynamic range all listed), the kind of input a vocalist or a live instrument plugs straight into without a separate audio interface. The X's table follows that with two dedicated unbalanced instrument inputs (a proper guitar/bass DI-style input) and two 1/4" TS footswitch inputs for hands-free control. None of those three input categories, mic, instrument, or footswitch, appear anywhere in the MPC Live's own Digital Audio System or Connections blocks. Read together, the input list tells you what each machine was actually built to be: the X's own spec table reads like a compact audio interface with a sampler bolted on, mic preamps and instrument ins and a footswitch jack included, while the Live's table reads like a sampler with two line inputs for feeding it audio, nothing more. Buyers picturing the Live as "a smaller X" tend to miss this until they try to plug a mic or a guitar straight in and find no input built for it.

CV/Gate: eight jacks against zero

This site's own mpc-cv-gate-tracks article already established which current MPC hardware has physical CV/Gate jacks and which doesn't, and the Live is the specific exception it named: "The original MPC Live is the odd one out, and it's not a documentation gap, it's a confirmed absence: its full 17-item rear panel list, power input through Kensington lock slot, never mentions CV or Gate once, in either manual version checked." The MPC X's own Technical Specifications table lists 8 CV/Gate outputs, all 1/8" TS, one signal per jack with no TRS breakout option, more raw jack count than any other current-lineup machine this site has covered. Anyone planning to sequence a modular rig or an old analog drum machine straight from a standalone MPC needs to rule the Live out entirely for that use case; the X is the only machine from this specific launch pair that can send control voltage anywhere.

Battery, weight, and footprint

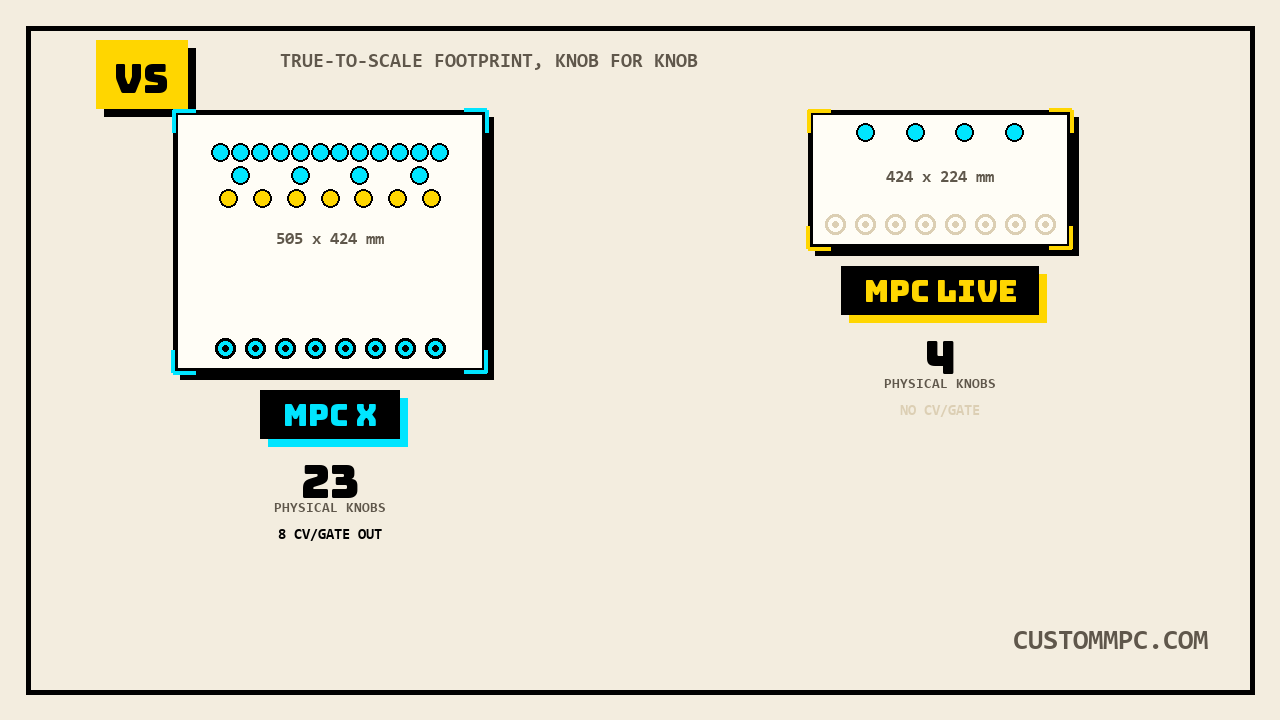

The Live's one clear structural win is portability, and Akai's own manual is specific about how exclusive that feature is: "Important: Only MPC Live and MPC Live II may use battery power. MPC X, One, One G2, Key 61, Key 37, and Key 37 G2 must be connected to a power outlet." The Live's own Power block backs that with a real number, up to 6 hours on its internal lithium-ion battery; the X's Power block lists only a power-adapter spec, no battery line at all. The weight and footprint numbers make the portability story concrete rather than abstract. The Live's own Dimensions block gives a 424 x 224 x 69mm footprint at 2.7kg; the X's gives 505 x 424 x 87mm in its flat orientation (505 x 388 x 214mm with the display raised upright) at 5.66kg, more than double the Live's weight and nearly double the footprint area. That tradeoff runs in one direction only: nothing in either table suggests a battery-powered path exists for the X's extra knobs and inputs, and nothing suggests a way to add the X's front end to the Live without an external audio interface.

Storage and RAM, by variant

The base MPC X ships with 2GB of RAM and 16GB of internal storage (6GB actually usable after pre-installed content), identical RAM to the Live and the same 16GB total storage figure, but a different usable split: the Live's 16GB breaks down as 6GB user storage plus 10GB pre-installed content, the same 6GB user figure as the base X despite Akai listing the total differently in each table. The MPC X Special Edition, covered in full in this site's own mpc-x-buying-guide article, doubles that RAM to 4GB and nearly triples storage to 48GB with 10GB usable, a real spec bump Akai reserves for the X line specifically; the Live has no equivalent Special Edition variant in the current manual at all. Both machines share the same SATA expansion path and the same SD card slot for adding storage beyond the built-in figure, so the usable-storage gap matters most for buyers planning to run entirely off internal memory rather than an external drive.

A documented gap in the current manual

One honest limitation worth naming: unlike the front/rear-panel, button-by-button walkthroughs this site used for the mpc-live-ii-vs-one comparison, the current v3.9 manual's own front-matter table of contents lists no equivalent Top Panel or Rear Panel walkthrough chapter for either the MPC X or the original MPC Live, only for the newer Live II, One, One G2, Key 61, Key 37, and Key 37 G2. Both the X and the Live keep their full Technical Specifications tables, cited throughout this article, but the numbered hardware-item descriptions that would let a button-count comparison run the way it did for Live II vs One simply aren't in this particular manual revision for these two older models. Also worth flagging for anyone searching used listings: the same manual explicitly excludes two newer, similarly-named machines from its own scope, "MPC Live III and MPC XL, which have a separate User Guide." A seller's "MPC Live" listing should mean the original 2017 machine covered in this article, not the newer Live III; confirm which one you're actually looking at before assuming any figure here applies.

What they actually cost right now

The MPC X launched at a reported $1,999 street price in Q1 2017, positioned as Akai's flagship standalone unit with the fullest I/O in the lineup. The MPC Live launched the same quarter at $1,199, an $800 gap that buys the mic preamps, instrument and footswitch inputs, the extra 19 knobs, the CV/Gate outputs, and the larger touchscreen documented above, none of which show up as a line item unless you read the full table the way this article does. Both figures are 2017 launch prices from press coverage rather than current retailer listings, which shift with used-market pricing and with the newer MPC X Special Edition (launched April 26, 2023 at $2,499 per this site's own mpc-x-buying-guide article) now sharing shelf space with the original X; confirm the specific unit's current asking price, and which variant it actually is, directly before buying.

Common mistakes

Mistake: assuming the X is just "the Live with a bigger screen." The screen size gap (10.1" vs 7") is real but is the smallest structural difference between the two; the knob count, the mic/instrument/footswitch inputs, and the CV/Gate outputs are the machines that actually separate these units, and none of those show up on a screen-size comparison.

Mistake: buying an MPC Live expecting to plug a mic or a guitar in directly. Neither a mic preamp nor an instrument input exists anywhere in the Live's documented Digital Audio System or Connections blocks; both are X-exclusive in this launch pair.

Mistake: expecting CV/Gate output from an MPC Live. Confirmed absent across the full rear-panel item list in Akai's own manual; the X is the only machine in this launch pair that can send control voltage to modular gear at all.

Mistake: confusing "MPC Live" with "MPC Live III" on a used listing. The current manual explicitly scopes the newer Live III (and the MPC XL) out to a separate user guide; this article, and every spec cited in it, covers the original 2017 MPC Live only.

A note on sources

Both spec tables cited in this article sit in the current v3.9 Standalone OS User Guide's Technical Specifications appendix: "MPC X / MPC X Special Edition" at PDF pages 468-470 (printed footers 468-470) and "MPC Live" at PDF page 471 (printed footer 471), with the two tables sharing that final page where the X's table ends and the Live's begins. Neither the X nor the original Live carries a front/rear-panel button walkthrough in this manual revision, a genuine gap disclosed in its own section above rather than papered over with an estimated button count.

Two findings in this article cross-reference this site's own previously published, independently sourced work rather than re-deriving the same primary-source citations from scratch: the CV/Gate jack count and TS-only wording (already established in gear/mpc-cv-gate-tracks/ and gear/mpc-x-buying-guide/) and the MPC X Special Edition's pricing and RAM/storage figures (already established in gear/mpc-x-buying-guide/). Both were independently re-checked against the same primary manual passages during this pass rather than trusted forward, and matched exactly. Launch dates and pricing for the base X and Live came from WebSearch-indexed press coverage rather than direct retailer fetches, consistent with this site's established practice on pricing claims.

Verdict

Own either one, or found a spec this checklist missed? Tell us what happened.
